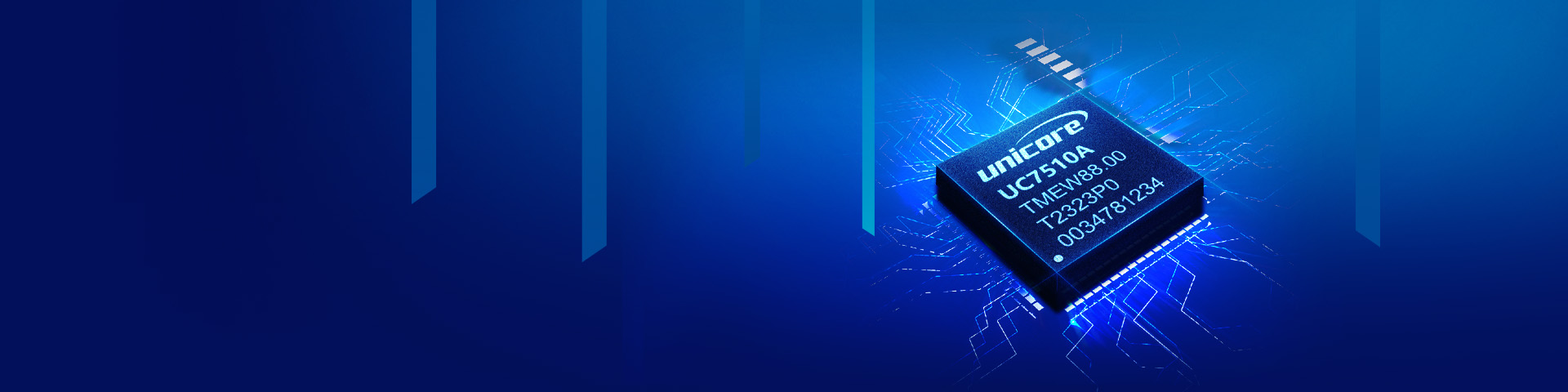

UFirebird IV UC7510

Unicore UFirebird IV^TM chip (see Product Models of UC7510) features 22 nm process with low power consumption and ultra-small form factor, significantly increasing the battery life of users’ device.

UC7510 is suitable for global applications. It supports L1 band of GPS, GLONASS, BDS,Galileo and QZSS multi-constellation joint positioning, and supports the reception and processing of multiple SBAS signals, providing users with fast, accurate and highperformance positioning experience.

UC7510 is highly integrated, with built-in LDO, LNA, RTC, etc. It can provide the function of a complete GNSS receiver with only a few external components, significantly reducing the PCB area and hardware costs for users.

The sub-model UC7510A-01 supports connection of various sensors such as gyroscopes, accelerometers, and odometers for fusion positioning. With the built-in DR (dead reckoning) algorithm, the chip can directly output GNSS + MEMS integrated positioning results, enabling continuous positioning even in tunnels and underground garages.

Ordering Information

Supply at multiples of 3000 pieces

Features

• 64 channels

• Supports L1 of GPS, BDS, GLONASS, Galileo, QZSS and SBAS; supports single constellation standalone positioning and multi-constellation joint positioning

• Built-in anti-jamming and spoofing detection technologies, with superior environmental adaptability

• Ultra high sensitivity: tracking -165 dBm, cold start -148 dBm

• Industrial grade and automotive grade available

• The automotive-grade chip qualified according to AEC-Q100

• 4 × 4 mm QFN28 package
