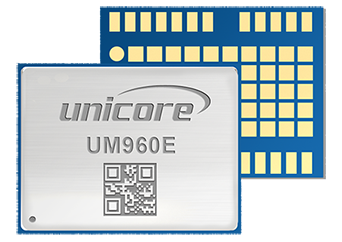

UM960E

Brief Introduction

UM960E is Unicore's new generation high-precision RTK module based on the proprietary GNSS SoC-NebulasIV, which integrates RF, baseband and high-precision algorithm. The module features a compact size of 16.0 mm × 12.2 mm with SMT pads, supporting fully automated integration through standard pick-and-place and reflow soldering. UM960E has various types of interfaces for different purposes, including UART and I²C*. It is primarily designed for the high-precision positioning field and is particularly suitable for robotic lawn mowers.

Features

• High precision, low power consumption and compact size

• Based on the new generation GNSS SoC -NebulasIV, which integrates RF, baseband and high-precision algorithm

• 16.0 × 12.2 × 2.6 mm surface mount device

• Supports all-constellation multi-frequency on-chip RTK positioning solution

• All-constellation multi-frequency RTK engine and advanced RTK technology

• Tracking different frequencies independently

• Excellent anti-jamming and anti-spoofing capabilities, supporting jamming detection and spoofing detection
